2501 DUAL UV DISINFECTION

Made in Germany, this system disinfects the pool water thanks to the UV radiation. It has to be installed after the filter in the filtration system.

Characteristics of the 2501 DUAL range :

• up to 28  m³/h filtration flow rate (for UV-C dose of 300 J/m²)
• up to a 160 m³ pool
• 20 h/day period of use
• 10 bars max pressure
• min 2°C / max 40°C temperature
• 2 x 90 W power
• to connect on 110-240 V
• 10 000 h lamp lifetime

Technical details:

2501 DUAL PVC UV disinfection:

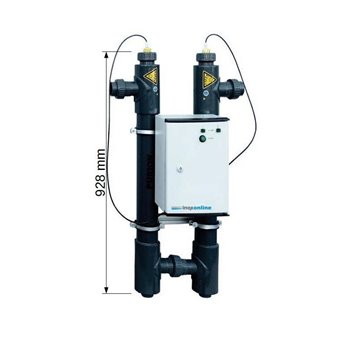

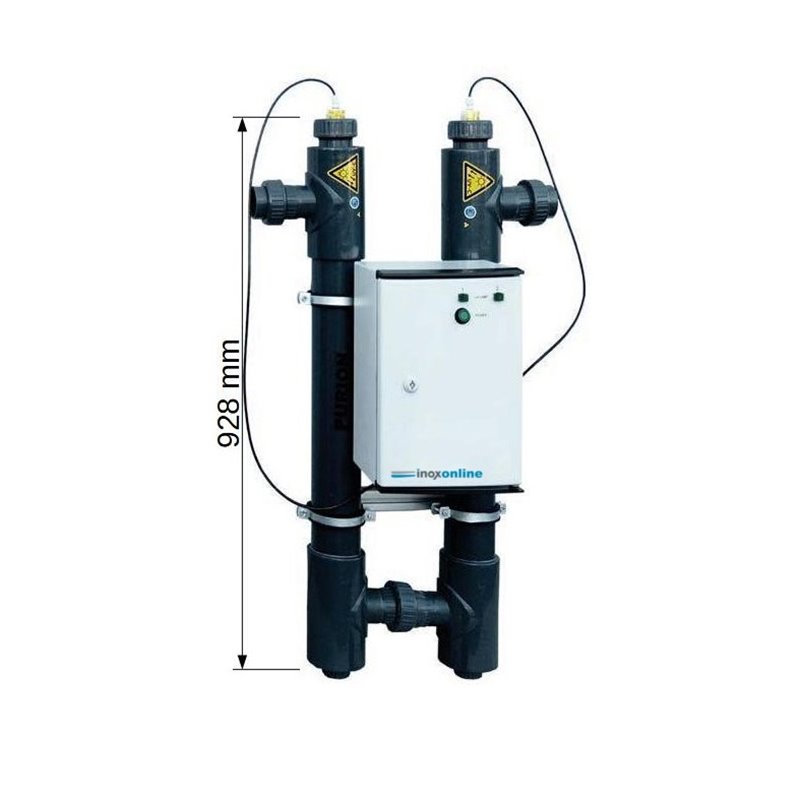

• Dimensions : 928 mm length and 100 mm diameter (x2)
• Centre distance : 710 mm
• Weight : 16 kg
• Connection : 50 mm
• PVC-U housing, suitable with any type of treatment (chlorine, active oxygen, etc.) and especially with salt electrolyser

2501 DUAL stainless steel UV disinfection:

• Dimensions : 928 mm length and 85 mm diameter (x2)
• Centre distance : 810 mm
• Weight : 16 kg
• Thread : 1 1/2“
• 316TI stainless steel housing (not suitable with pools treated by a salt electrolyser)

2501 DUAL stainless steel ""plus"" UV disinfecion:

• Dimensions : 928 mm length and 85 mm diameter (x2)
• Centre distance : 810 mm
• Weight : 16 kg
• Thread : 1 1/2“
• 316TI stainless steel housing (not suitable with pools treated by a salt electrolyser)

OPD system (= Operating Power Detection): for the lamp intensity monitoring (green, yellow, red LEDs), to keep an optimal efficiency of the system.

Possible to set up the OPD monitoring option with the potential-free contacts assigned to each LED. Then, informations concerning the current state of the lamp can be used for further switching operations (filtration system shutdown...)
