2501 UV DISINFECTION

Made in Germany, this system disinfects the pool water thanks to the UV radiation. It has to be installed after the filter in the filtration system.

Characteristics of the 2501 range:

• up to 14 m³/h filtration flow rate (for a UV-C dose of 300 J/m², up to 21 m³/h for the ""H"" range
• up to a 80 m³ pool
• period of use: 20h/day
• 10 bars max. pressure
• min 2°C/max 40°C temperature
• 90 W power
• to connect on 110 - 240 V
• 10 000h lamp lifetime

Technical details:

2501 PVC UV disinfection:

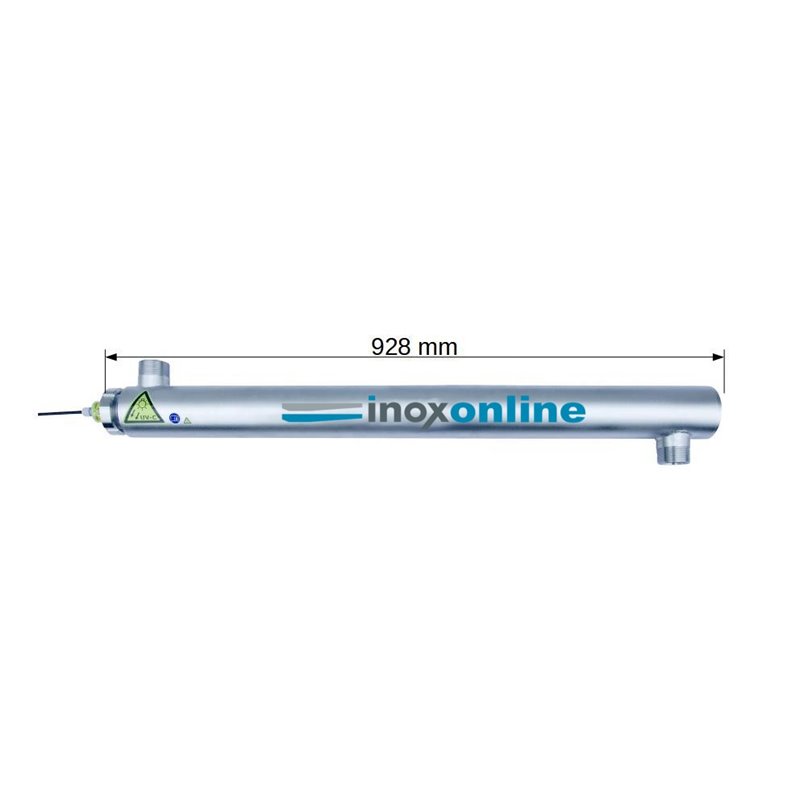

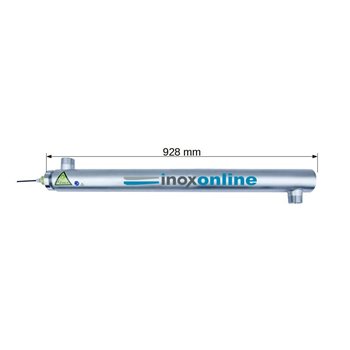

• Dimensions : 928 mm length and 100 mm diameter
• Centre distance : 710 mm
• Weight : 8 kg
• Connection : 1 1/2“
• PVC-U housing, suitable with any type of treatment (chlorine, active oxygen, etc.) and especially with salt electrolyser

2501 stainless steel UV disinfection:

• Dimensions : 928 mm length and 100 mm diameter
• Centre distance : 810 mm
• Weight : 5,5 kg
• Thread : 1 1/2“
• 316TI stainless steel housing (not sui table with pools treated by a salt electrolyser)

2501 stainless steel ""plus"" UV disinfection:

• Dimensions : 928 mm length and 100 mm diameter
• Centre distance : 810 mm
• Weight : 5,5 kg
• Thread : 1 1/2“

-------------------------------------------------------------------------------------------

The ""H"" range includes a more powerful 106 W lamp

2501 H stainless steel UV disinfection:

Min. 2°C / max. 90°C temperature
Dimensions : 928 mm length and 100 mm diameter
Centre distance : 810 mm
Weight : 5,5 kg
Thread : 1 1/2“
Power : 106 W

8 000h lamp lifetime

316TI stainless steel housing (not suitable with pools treated by a salt electrolyser)

2501 H stainless steel ""plus"" UV disinfection

• Min. 2°C / max. 90°C temperature
• Dimensions : 928 mm length and 100 mm diameter
• Centre distance : 810 mm
• Weight : 5,5 kg
• Thread : 1 1/2“
• Power : 106 W
• 8 000h lamp lifetime



316TI stainless steel housing (not sui table with pools treated by a salt electrolyser)

OPD system (= Operating Power Detection) : for the lamp intensity monitoring (green, yellow, red LEDs), to keep an optimal efficiency of the system.

Possible to set up the OPD monitoring option with the potential-free contacts assigned to each LED. Then, informations concerning the current state of the lamp can be used for further switching operations (filtration system shutdown...)
