2001 UV DISINFECTION

Made in Germany, this system disinfects the pool water thanks to the UV radiation. It has to be installed after the filter in the filtration system.

Characteristics of the 2001 range:

• up to 8 m³/h filtration flow rate (for UV-C dose of 300 J/m²)
• up to a 40 m³ pool
• 10 bars max pressure
• min 2°C / max 40°C temperature
• 48 W power
• to connect on 110-240 V
• 10 000h lamp lifetime

Technical details:

2001 PVC UV disinfection:

• Period of use : 20 h/day
• Dimensions : 670 mm lkength and 100 mm diameter
• Centre distance : 360 mm
• Weight : 6 kg
• Thread : 1 1/2“
• PVC-U housing, suitable with any type of treatment (chlorine, active oxygen, etc.) and especially with salt electrolyser

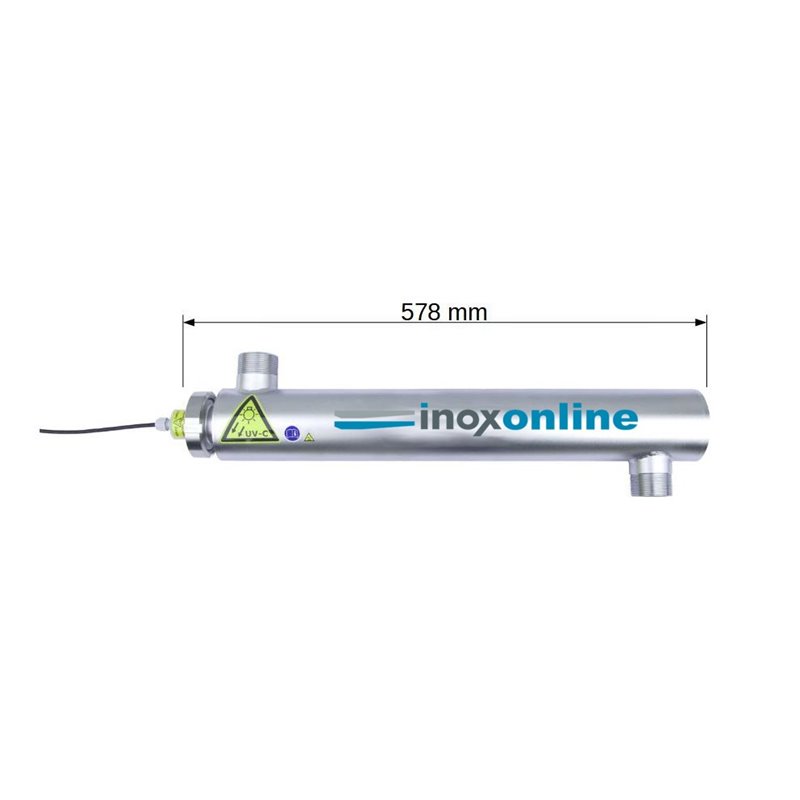

2001 stainless steel UV disinfection:

• Period of use : 15 h/day
• Dimensions : 578 mm length and 85 mm diameter
• Centre distance : 460 mm
• Weight : 4,1 kg
• Thread : 1 1/2“
• 316TI stainless steel housing (not suitable with pools treated by a salt electrolyser)

2001 stainless steel ""plus"" UV disinfection

• Period of use : 15 h/day
• Dimensions : 578 mm length and 85 mm diameter
• Centre distance : 460 mm
• Weight : 4,1 kg
• Thread : 1 1/2“
• 316TI stainless steel housing (not suitable with pools treated by a salt electrolyser)

OPD system (= Operating Power Detection) : for the lamp intensity monitoring (green, yellow, red LEDs), to keep an optimal efficiency of the system.

Possible to set up the OPD monitoring option with the potential-free contacts assigned to each LED. Then, informations concerning the current state of the lamp can be used for further switching operations (filtration system shutdown...)
