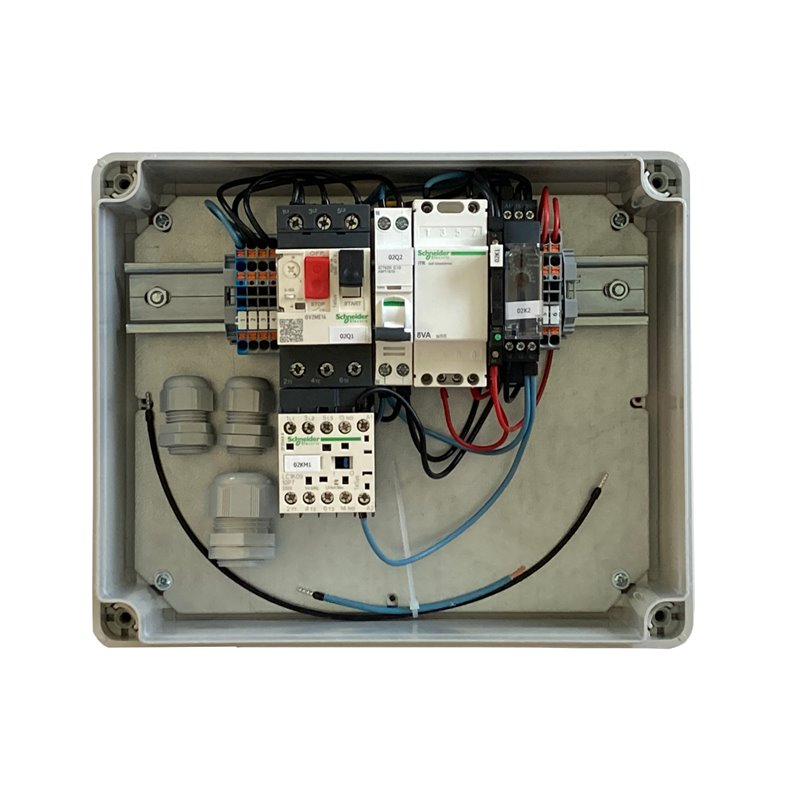

ELECTRICAL CONTROL BOX FOR WATER ATTRACTIONS

Electrical control box for water attractions, high quality ""plexo"" plastic type housing with cable glands.

The 1 pump box (29 x 24 x 13 cm) includes :

• 1 switch 4x20A
• 1 motor circuit breaker up to 6A single or three phase
• 1 three-pole contactor
• 1 protection circuit breaker for the control circuit
• 1 230/12VAC transformer
• 1 relay for the 12V piezo button
• 1 relay for the remote pump control

The 2 pumps box (34 x 29 x 13 cm) includes :

• 1 switch 4x20A
• 2 motor circuit breakers up to 6A single or three phase
• 2 three-pole contactors
• 1 protection circuit breaker for the control circuit
• 1 230/12VAC transformer
• 2 relays for the 12V piezo button
• 2 timed relays or with a remote for the pumps control

The 3 pumps box (34 x 29 x 13 cm) includes :

• 1 switch 4x20A
• 3 motor circuit breakers up to 6A single or three phase
• 3 three-pole contactors
• 1 protection circuit breaker for the control circuit
• 1 230/12VAC transformer
• 3 relays for the 12V piezo button
• 3 timed relays or with a remote for the pumps control
