PH REGULATION AND AUTOMATIC CHLORINE DOSAGE

To have informations concerning the prices, contact us on (+33) 3 67 98 20 76 or by email at info@inoxonline.fr

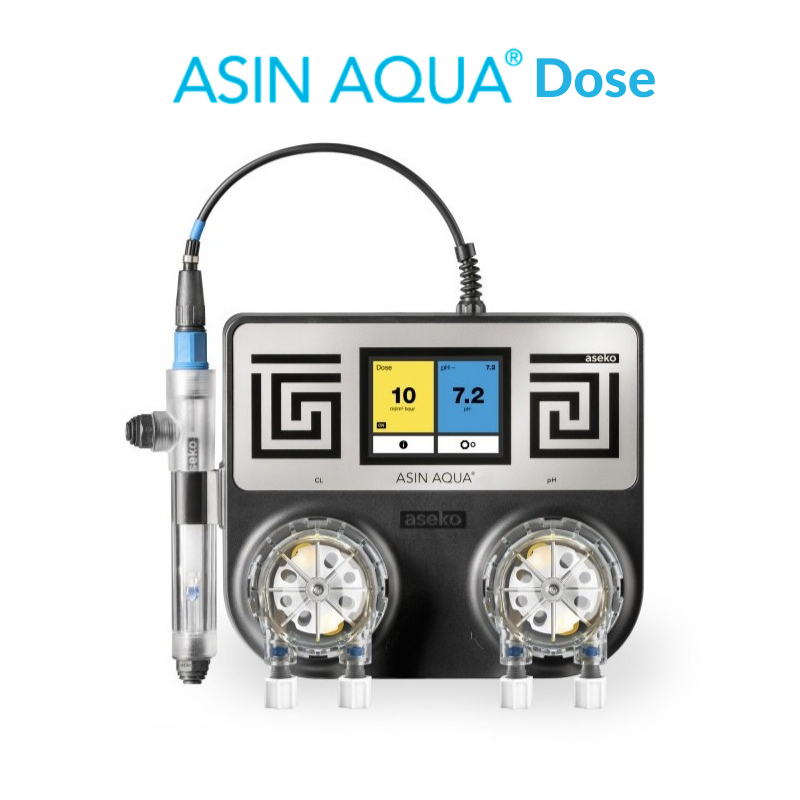

Dosing system with pH probe

• automatic dosage of chlorine or other product in given periods of time.
• automatic dosage of pH controlled by the pH probe

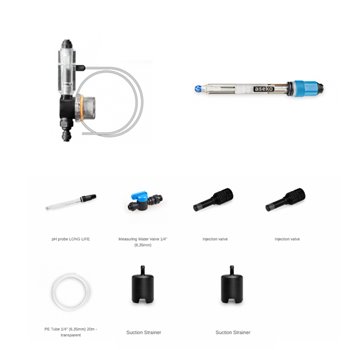

The box includes:

• he control device
• 2 dosing pumps: pH and chlorine
• electronic flow meter for control
• pH probe
• integrated analysis chamber
• fixing accessories (injectors, analysis chamber bypass valves, test box...)

Possibility of connecting an external touch screen (not included)

Technical informations:

• Power supply: 230V / 50Hz
• Power consumption: 14 VA
• Fuse: T80 mA
• Overvoltage category: II
• Protection factor: IP 50
• Operating temperature and humidity: +5 à + 40°C / 60%
• Water pressure measure: max 1,5 bar
• Measured and regulated value: free chlorine or redox and pH
• Dosing pump capacity: 60 ml / min. / max. 1bar
• Weight: 2,2 kg
• Installation: wall
