ASIN POOL COMPLETE CONTROL

• To have informations concerning the prices, contact us on (+33) 3 67 98 20 76 or by email at info@inoxonline.fr

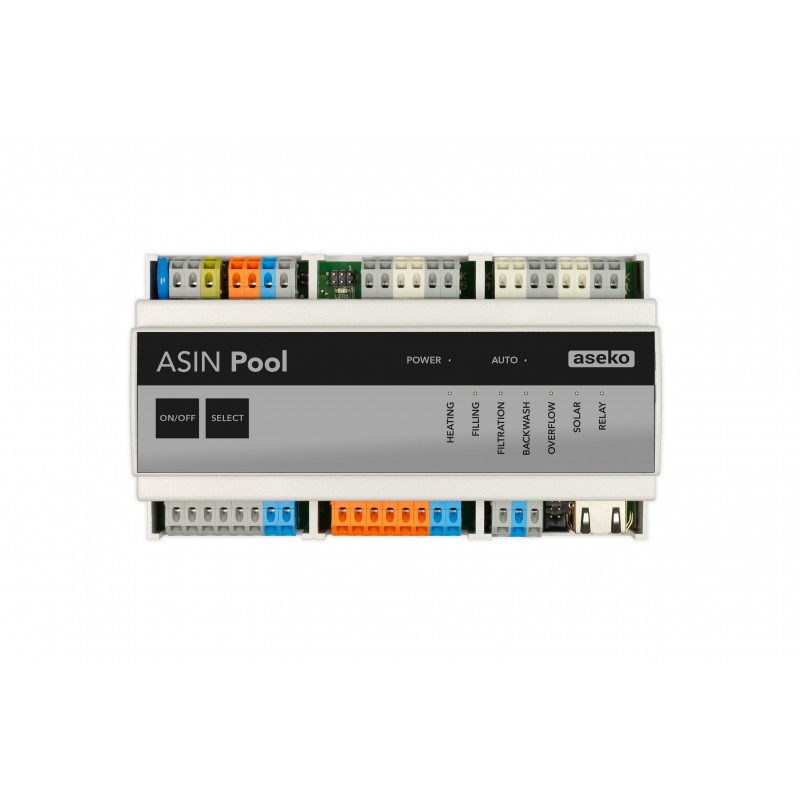

The ASIN Pool network controller allows you to control and adjust all the pool's technical elements using an online smartphone app. In case of an internet failure, a connection can be established with the controller via direct WIFI. The ASIN Pool is designed for DIN rail installation directly in the electrical panel.

You can remotely control:

• lighting in the pool
• the filter backwash (with 5 ways BESGO valve, not included)
• the automatic pool filling
• the heating
• the switching overflow/bottom drain (with 3 ways BESGO valve, not included)
• the solar heating pump
• the filtration control relay

Dimensions: 155 x 110 x 60 mm

-----------------------------------

Basic functions:

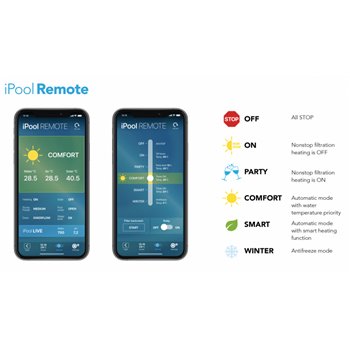

The ASIN Pool have 6 predefined operating modes:

• OFF : Everything is switched off.
• ON : The filtration pump (variable flow rate) is on at speed 1 and the heating is off.
• COMFORT : This mode is for the pool routine operation when the priority is to reach the required temperature. It allows to preset 4 filtration periods during the day, in which you can preset the filtration power and choose overflow or internal filtration function (with the bottom drain).
• PARTY : This mode switches the circulation pump to speed 2 and heats to the required temperature. It has no timer function.
• SMART : Similar to COMFORT mode and SMART heating function.
• WINTER : For this mode, you have to install the outdoor thermometer (not included).

If the outside temperature falls below 0°C, the circulation pump is activated.

After 15 minutes, the water temperature is measured.

If the water temperature is still below the preset icing temperature (e.g. 4°C), the relay switches the heating on.

Once the preset temperature has been reached, the circulation pump stops. The next pool temperature test and circulation pump start-up will follow in 6 hours.
