ACTIVE OXYGEN AND PH REGULATION CONNECTED

Active Oxygen and pH regulation connected

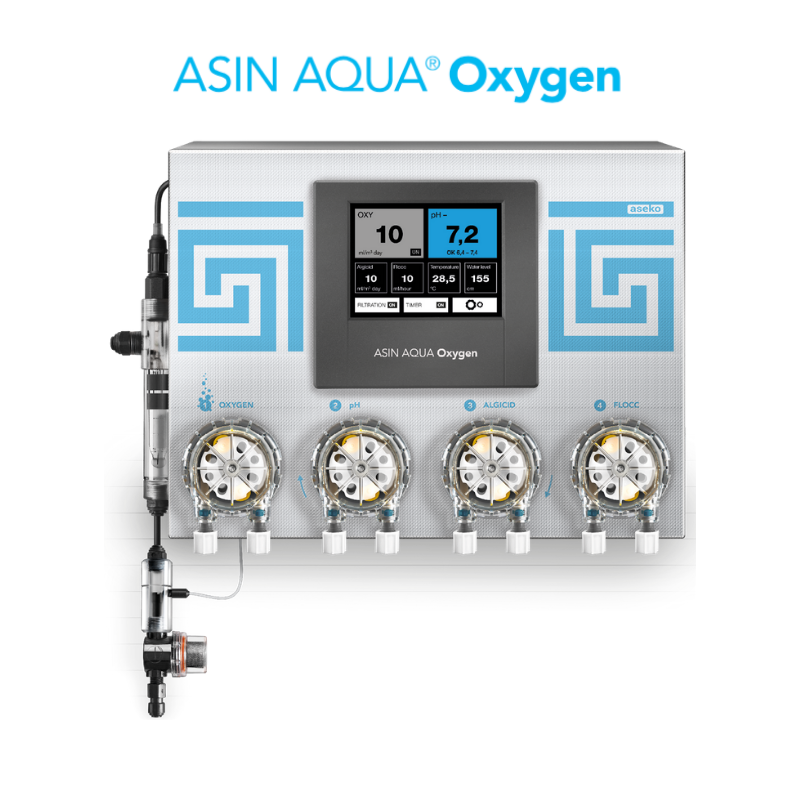

Chlorine-free pool water disinfection system for clear, healthy water with active oxygen.  Zeta Potential Mixer DN 40/2, 195mm (D 50mm) included.

Thanks to four dosing pumps, disinfection, pH, algaecide and FLOC + C flocculant can be dosed simultaneously. This means a low concentration of disinfectant and non-irritating water.

This ASIN AQUA OXYGEN device is ideal for pools up to 250m³, with high temperatures and/or intensive exposure to sunlight.

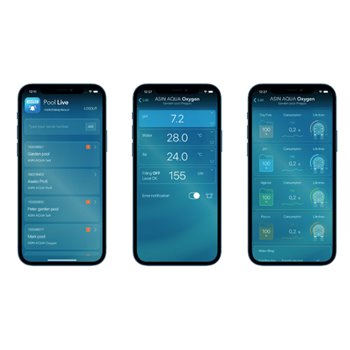

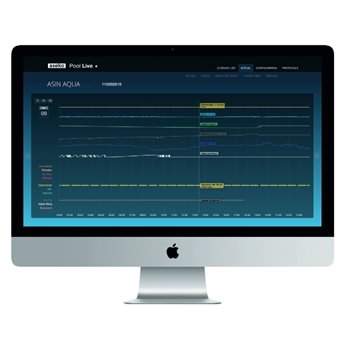

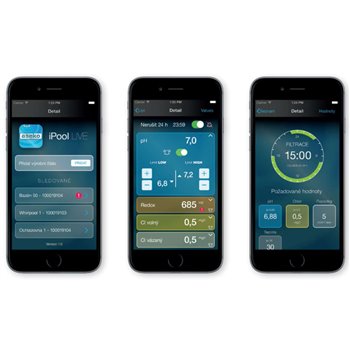

The Pool Live application and the pool.aseko.com website allow remote consultation of pool parameters, their complete history and an overview of maintenance operations (provided the appliance is connected to the internet via an Ethernet cable).

The ASIN AQUA OXYGEN device has several functions:

Control and management of water temperature / Water level / Filtration time control / Automatic filter cleaning (Besgo valve, for example) / Frost protection / Variable or standard pump controller

Technical information:

- relay contacts: max 230V/1A
- max filtration pump power: 1.49 kW/230V AC
- operating temperature: +5 to +40°C
- weight: 6.7 kg
- stainless steel enclosure

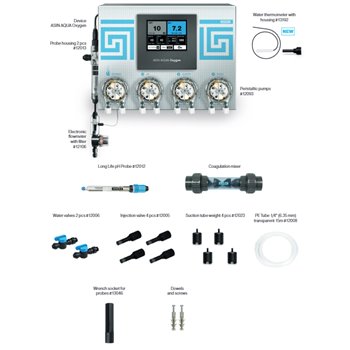

Your order includes:

- the control unit
- 3 dosing pumps 60 ml/min + 1 FLOC+C pump: 10 ml/min
- flow sensor
- pH probe
- 1 analysis chamber
- temperature probe with immersion sleeve
- ZETA potential mixer
- installation accessories (injectors, test chamber by pass valves, test box, etc.)
- LAN adapter for Internet connection

Possibility of connecting an external touch screen (not included)
