RÉGULATION CHLORE LIBRE OU REDOX ET PH CONNECTÉE

To have informations concerning the prices, contact us on (+33) 3 67 98 20 76 or by email at info@inoxonline.fr

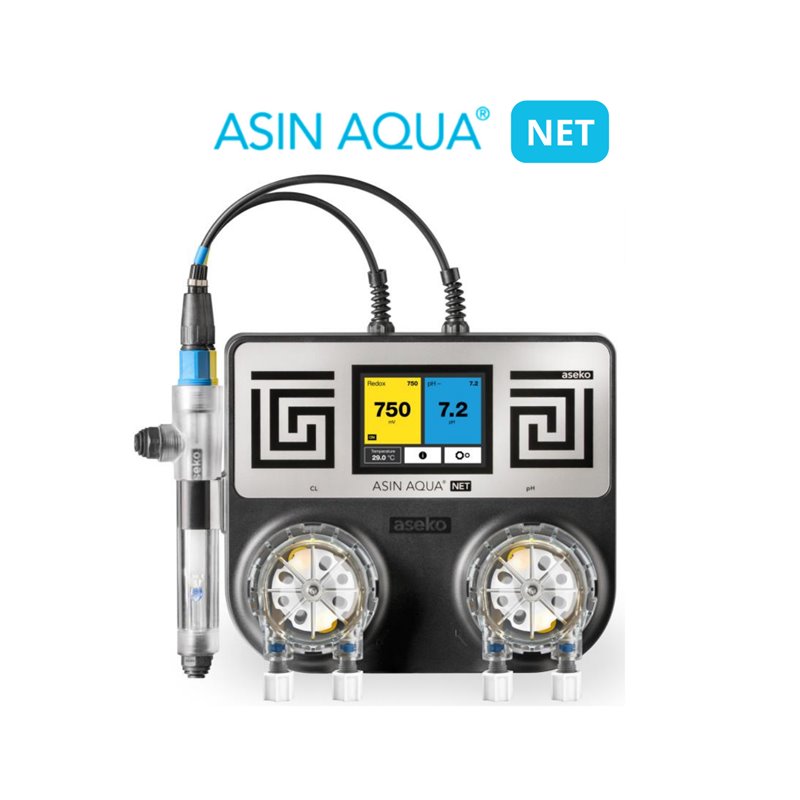

ASIN AQUA NET device: compact dosing system for automatic pool water treatment with probe holder. Designed for private pools and SPAs up to 250m³.

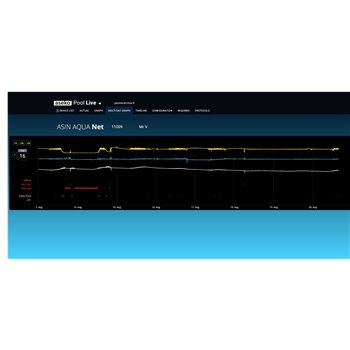

Pool Live app and pool.aseko.com website for the remote consultation of pool parameters, their complete history and an overview of maintenance operations (provided the appliance is connected ti the internet via an Ethernet cable).

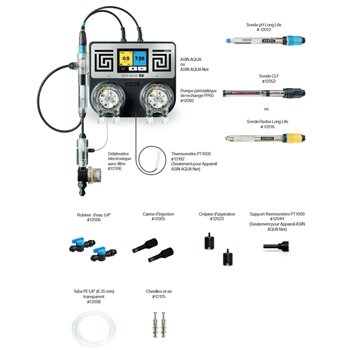

The box includes:

• the control device
• 2 dosing pumps: pH and chlorine
• the electronic flow meter for control
• the REDOX probe for measuring the oxidative potential / the CLF probe for measuring the free chlorinee
• the pH probe
• 2 integrated analysis chambers
• the temperature probe with its probe holder
• fixing accessories (injectors, analysis chamber bypass valves, test box...)
• LAN connector for internet

Possibility of connecting an external touch screen (not included)

***For all chlorine measure, we recommand you not to put any stabiliser in your pool***

Technical informations:

• Power supply: 230V / 50Hz
• Power consumption: 14 VA
• Fuse: T80 mA
• Overvoltage category: II
• Protection factor: IP 50
• Operating temperature and humidity: +5 à + 40°C / 60%
• Water pressure measure: max 1,5 bar
• Measured and regulated value: free chlorine or redox and pH
• Dosing pump capacity: 60 ml / min. / max. 1bar
• Weight: 2,2 kg
• Installation: wall
