FREE CHLORINE OR REDOX AND PH REGULATION

For pricing information, contact us on 03.67.98.20.76 or by e-mail: info@inoxonline.fr

Free chlorine / Redox and pH regulation: water treatment for your pool, Inoxonline pool equipment is suitable for all types of pool: swimming pool, spa, in-ground, above-ground, liner, stainless steel, tiled...

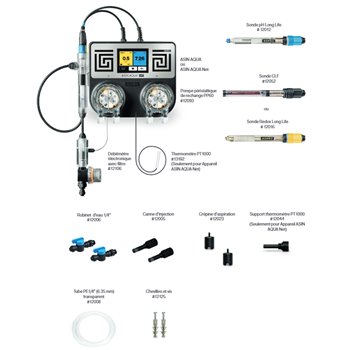

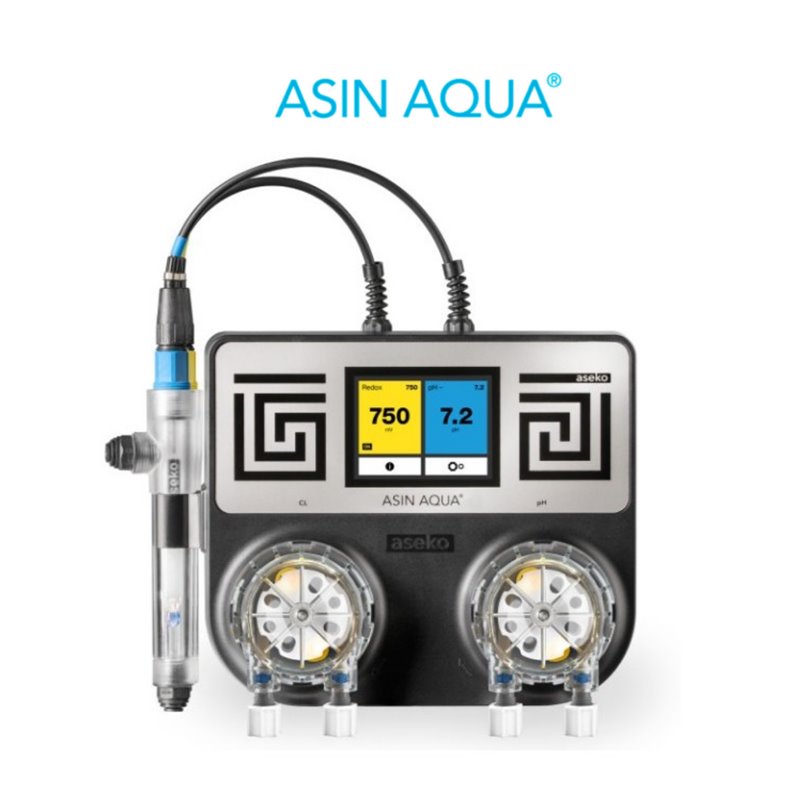

ASIN AQUA compact dosing unit for automatic pool water treatment with probe holder. For private pools and SPAs up to 250m³.

Your order includes :

• Control unit
• 2 pH and chlorine dosing pumps
• Electronic flow meter

Your choice of

• REDOX probe to measure oxidative potential; or CLF probe to measure free chlorine content in pool water
• pH probe
• 2 integrated analysis chambers
• Installation accessories (injectors, test chamber bypass taps, test box, etc.)

***For all free chlorine measurements, we recommend that you do not add stabilisers to your pool***.

Technical data:

• Power supply: 230V / 50Hz
• Power consumption: 14 VA
• Fuse: T80 mA
• Overvoltage category: II
• Protection class: IP 50
• Operating temperature and humidity: +5 to +40°C / 60%.
• Water pressure measurement: max 1.5 bar
• Measured and controlled values: free chlorine or redox and pH
• Dosing pump capacity: 60 ml / min. / max. 1bar
• Pool volume: max. 250m3
• Weight: 2.2 kg
• Mounting: wall-mounted
